Site has been rewritten to facilitate viewing on mobile devices.
---------------------------

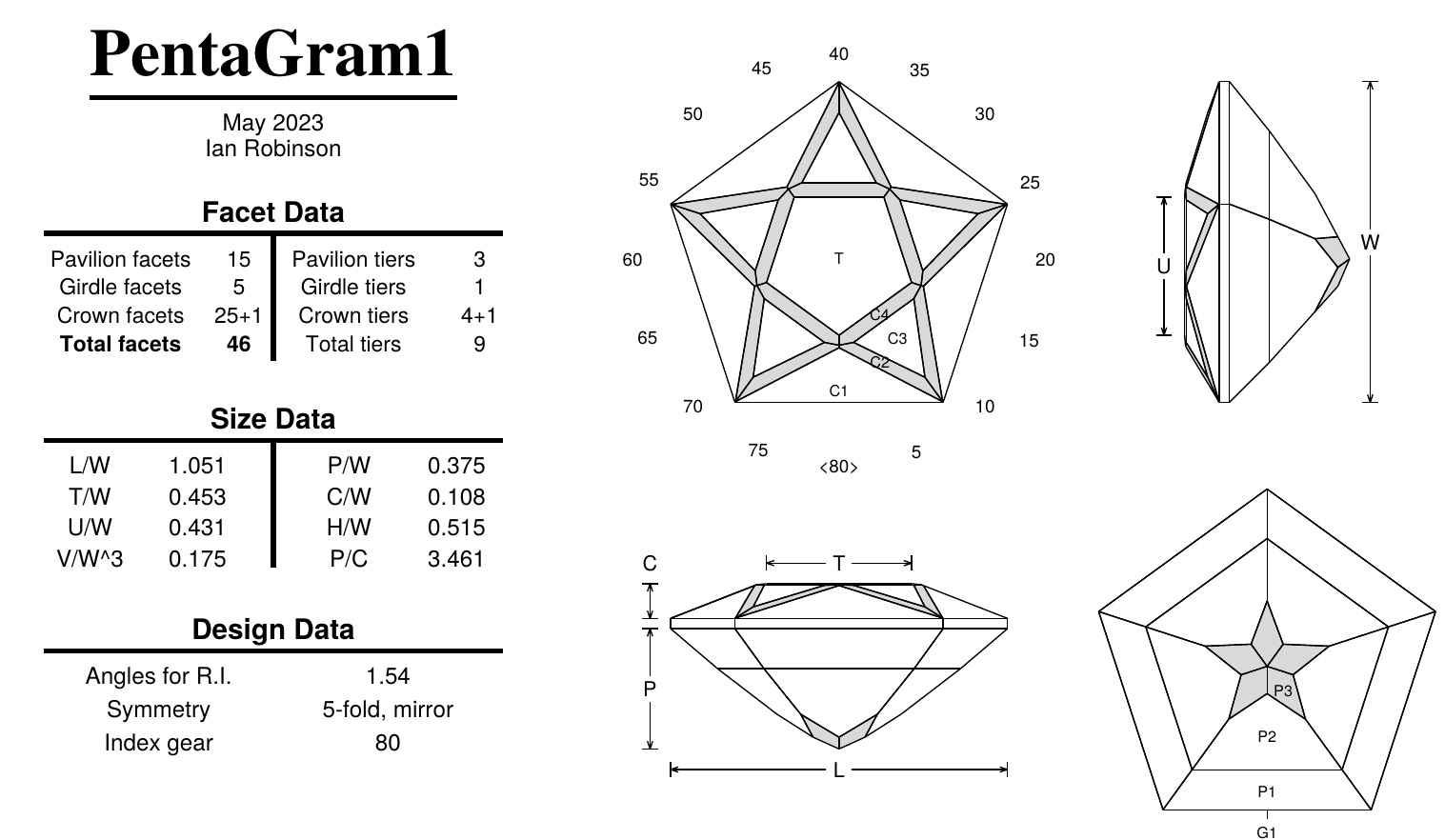

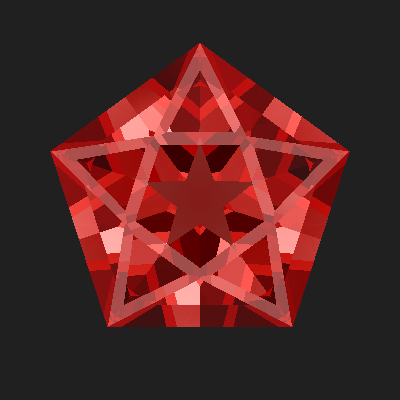

Whoops - not posted anything for a while. Here is a design I have been working on, a pentagram is picked out on the crown with frosted facets whilst a small pentagram appears at the cullet.
---------------------------

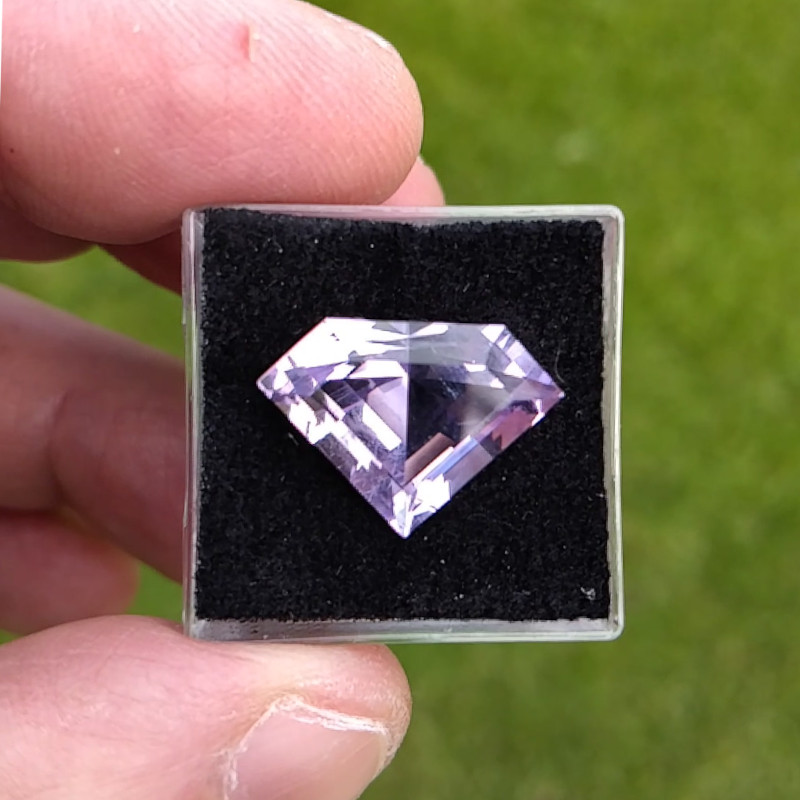

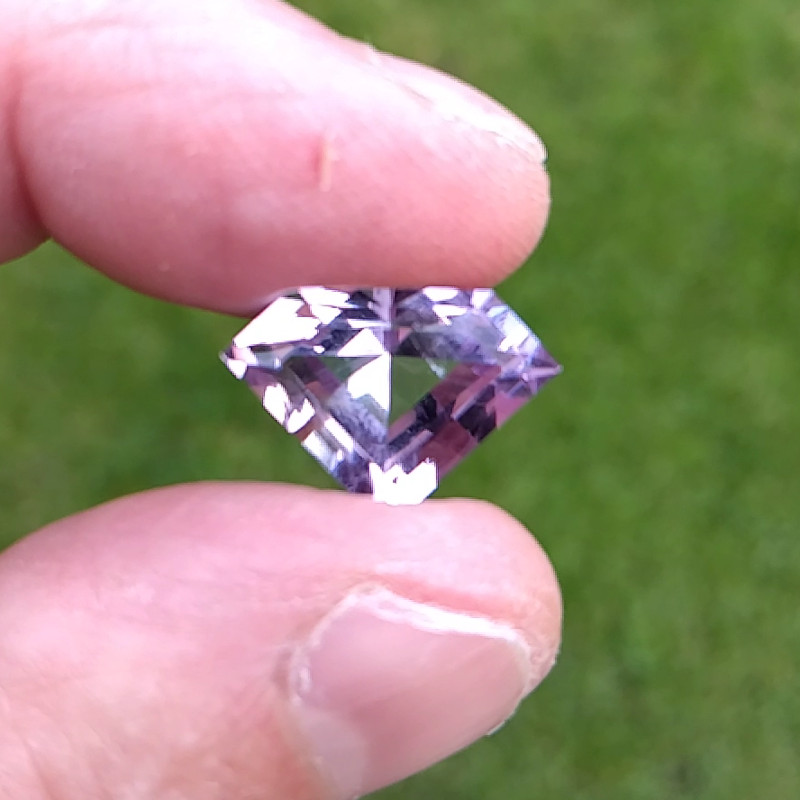

Quick video of the pavilion of 'SpellBound Square' - in light rose de france amethyst. Design by Jeff Rhomenus -- half of the pavilion facets are frosted.
---------------------------
A quick vid of the first cut of my latest design, 'Hagal Rune'. Cut in blue lab spinel.
---------------------------

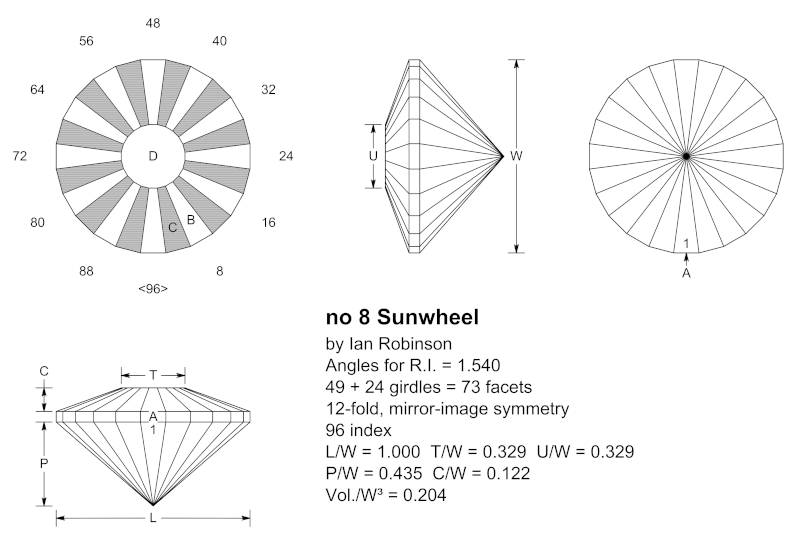

A new design. Frosted facets form the spokes.
---------------------------

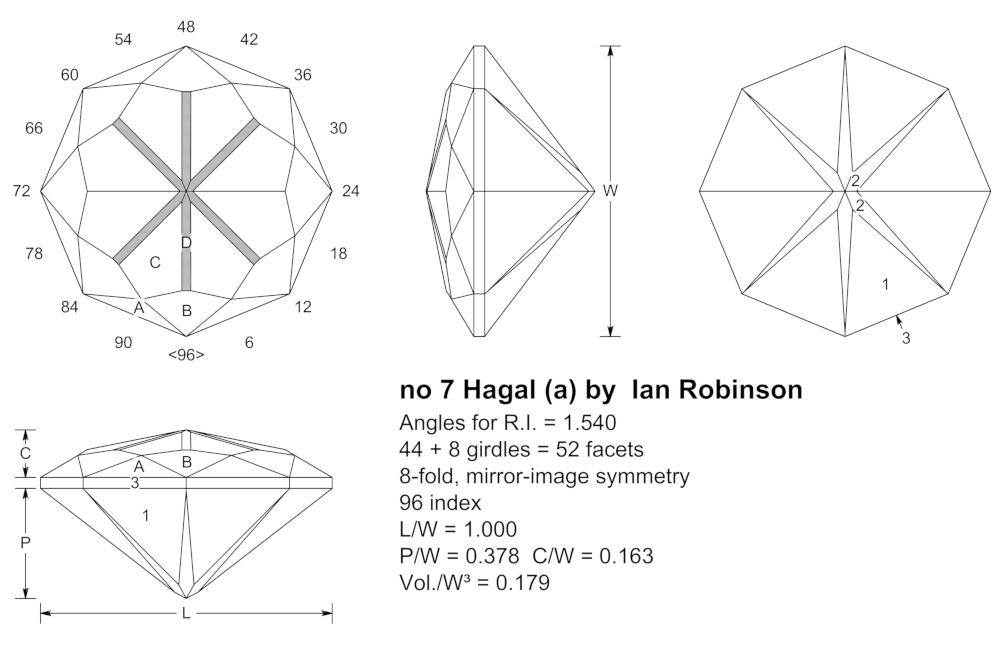

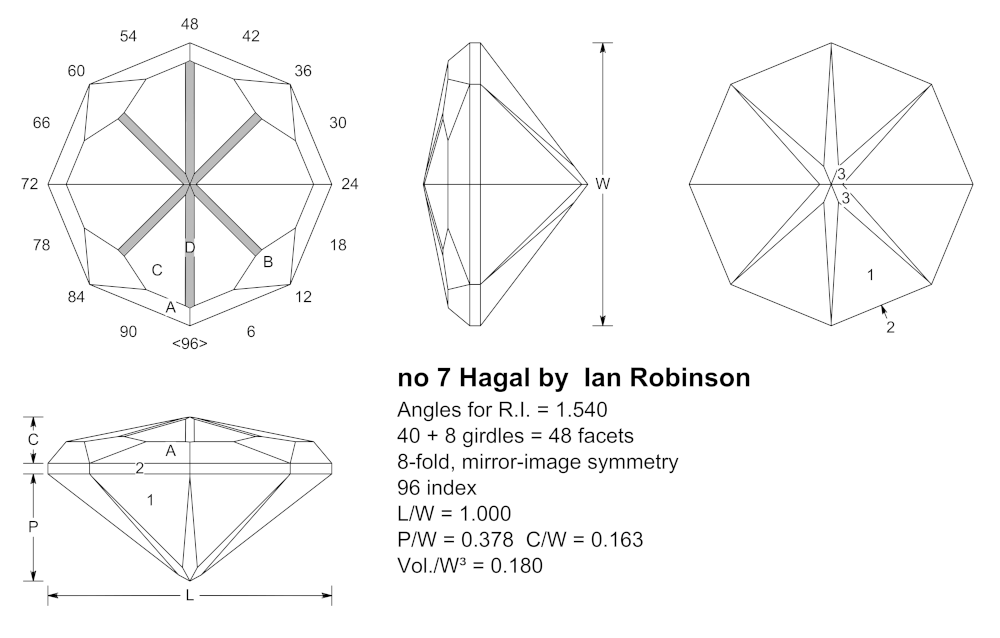

A new design. This is what I was originally going for with my 'Apostate' cut. The frosted facets form the Hagal rune. This is the original Scandanavian - Younger Futhark glyph with the longer vertical lines.
This 2nd design is a variant using Armanen Futharkh script of Guido Von List. List promoted 'Wotanism', a germanic neopaganism movement of the early 20th century.
I seem to notice more wearing of Mjölnir and Sunwheel pendants. Is neopaganism on the rise?
Will cut both designs and post images.
---------------------------
A quick and not very good impression of my latest. A Star of David cut in the rather rare Lithium Niobate- this may well be the only one presently available worldwide :-). Rather pleased, the image does not do it justice - in sunlight this material explodes into a riot of colour, I'll post a video when I get the chance.
Not easy to do, getting the frosting this even is tricky whilst the Niobate was an absolute sod to polish. I nearly gave up - unfortunately giving up is something I find difficult - this is a characteur flaw. Probably took about 40 hours all told. I'm afraid this is likely to be rather expensive if I do sell it, my better half is coverting though am open to offers.
10.76mm wide x 5.76 deep, 8.30 ct.
---------------------------
Gosh - I don't really post much in this.
Presently working up a nice stark triangle design - vaguely gay 'pride-ish'. I fancy the idea of stark, i.e. simple with a step cut crown. Overly simple designs do not usually work too well for larger stones, I'm thinking pendant size here. So, possibly have a brilliant cut pavilion - possibly with a bubble carved at the culet...
Carving bubbles is bloody time-consuming though.
---------------------------
Pure white sapphire - second design in my 'Apostate' series. Brilliant cut pavilion. A high crown with 8 narrow frosted parallel-sided facets.
---------------------------
Blue Topaz "Chrysanthemum Flower" in sterling silver crown setting with rabbit ear bail. Setting entirely handformed from sheet silver.
---------------------------
Lab green sapphire in my Iconoclast cut. Green sapphire is rather uncommon and expensive. Nice colour.
---------------------------
Under drop-down menu. Initial post shows construction of a heavy hand-formed silver crown collet.
---------------------------

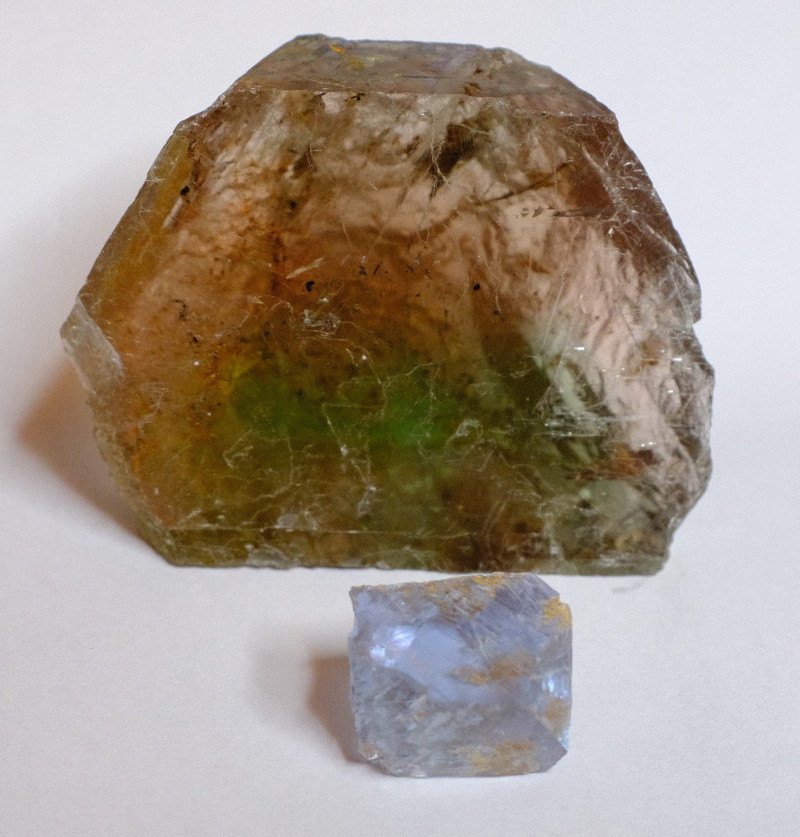

Hmm, appearing to be between commissions time to try something new. Fluorite - crystalline calcium fluoride (CaF2) is a drop-dead gorgeous material. Not rare, it comes in many colours, some fluoresce, some change colour with temperature. Fluorite is rarely set in jewellery as it is rather soft so cut stones are generally bought as collector's pieces. Apparently can be tricksy to cut and polish. Somehow I don't think this will end well.
---------------------------

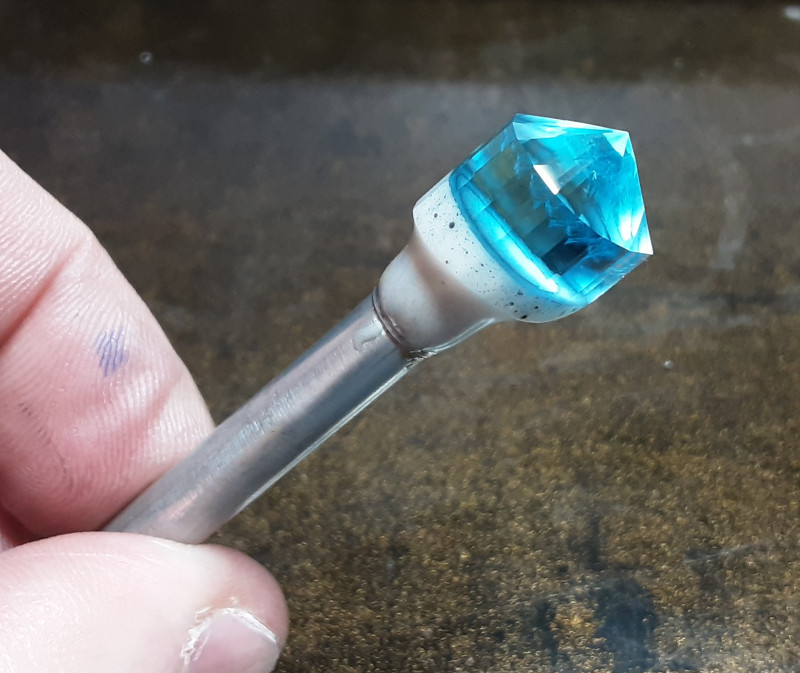

Halfway through cutting a large natural blue topaz in Jeff Graham's 'Brilliant Pear' cut. The pavilion (bottom) of the stone has been cut. It will now be transferred to another 'dop-stick' to cut and polish the table (top). The faint marks are not on the surface rather the result of veils - imperfections within the body of the stone.
If you want a perfect crystal then one needs to cut lab-grown rather than natural stones.
---------------------------

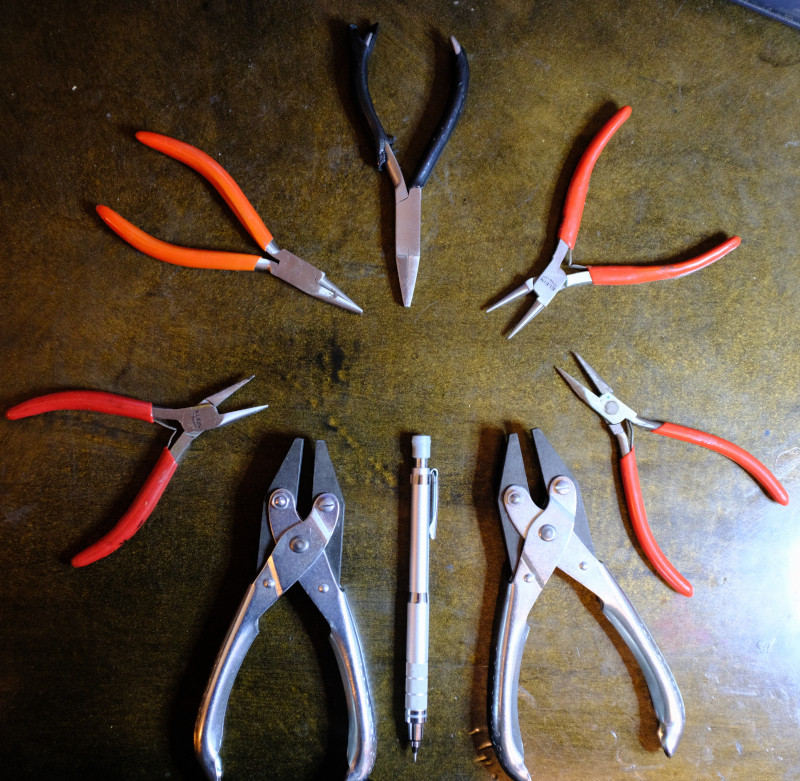

Just got some tasty new pliers - the two at the bottom. These are British made Maun parallel pliers with flat jaws. Used in silversmithing to bend metal without damaging the surface.
---------------------------

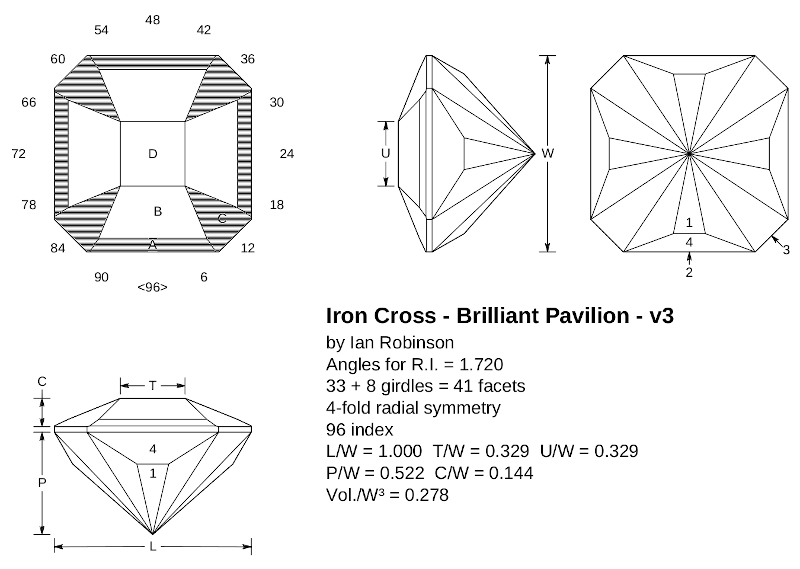

3 gemstones cut in my 'Iron Cross' design. Blue is lab-grown spinel, black is natural black spinel, clear is lab-grown 'white' sapphire.
The Iron Cross has been a German military award from 1877 to the present and its design may be traced back to the cross pattée of the 11th century Teutonic Knights of Jerusalem and earlier.
---------------------------
---------------------------
A commission - will cut a couple extra in amethyst and sapphire.

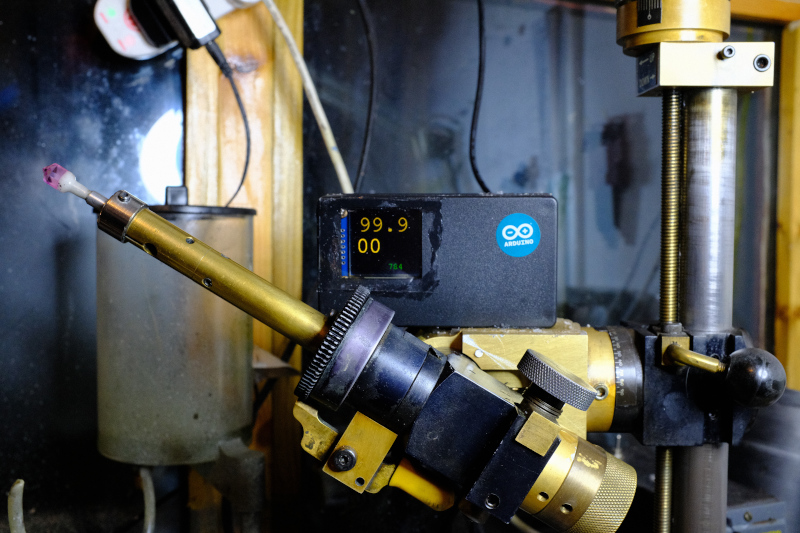

Finished my gemstone faceting machine upgrade - encoder version 2.
| High Resolution Inclinometer 1/40 degree, excellent repeatability. | |
|---|---|
 |
 |
Taken a while as other things have intruded. Works rather nicely reading to 0.025o using a US Digital optical encoder interfaced to an Arduino driving a 1.5" colour OLED display. Hardware has been running for a year or two without problems. New version has a much better display and simpler interface. No longer needs a switch to enter calibration mode and can be reprogrammed in situ via the USB power cable - greatly easing calibration. The Arduino Uno shown was replaced by a Nano allowing the whole thing to be fitted into a smaller box - I still managed to botch the display cut-out though. Thanks to Tom Herbst for his elegant code which I brutally and inexpertly simplified. Write-up for UKFCG to follow.
Stone on the dop is one of a matched pair of Hanami (花見) Sapphires.
Some more Neodymium-doped Yttrium Aluminium Garnet (Y3Al5O12) arrived today. Unusual shape for a laser rod but I can cut nice rectangular stones from this.
Just taken delivery of some Yttrium Aluminium Garnet (Y3Al5O12). From what I assume is a broken high-power laser rod. The provenance is interesting as I strongly suspect this came from the stockrooms of a soviet-era defense research establishment. Since the development of cubic zirconium YAG has fallen out of fashion as an exotic gem material - which does add rather to the rarity. :-)
'Lucifer' - cut in Indian black spinel.
I do like spinel feeling that the surface lustre is superior to sapphire. Black spinel has to be polished with great care as the smallest scratch is apparent. Was there any point cutting the pavilion (bottom) No - apart from a sense of completeness. In the video under bright light and high magnification it become apparent that the stone is actually a very deep red - to the naked eye appearing jet black. I think I'll set this myself when I can come up with a suitable design - thinking black silver spikes, gold & copper.
---------------------------
---------------------------

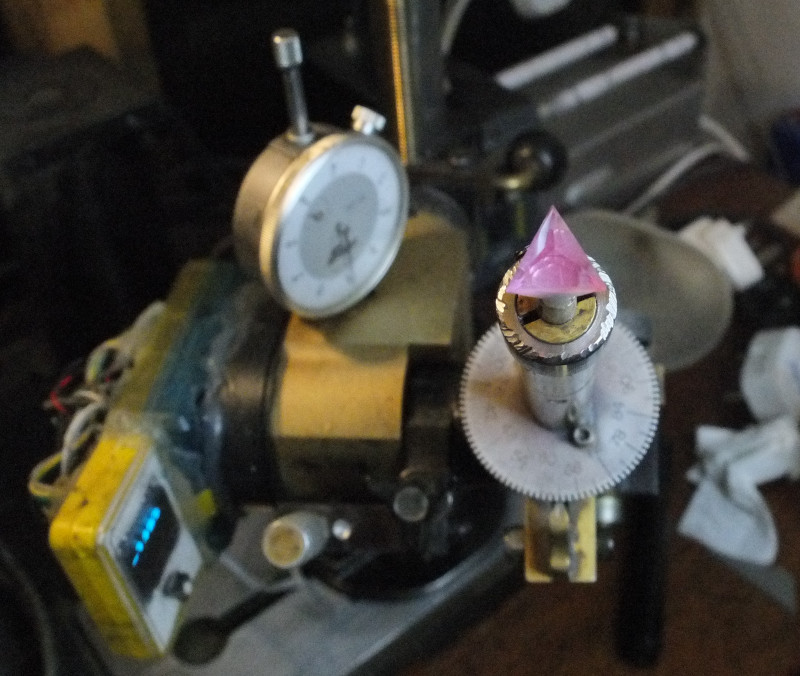

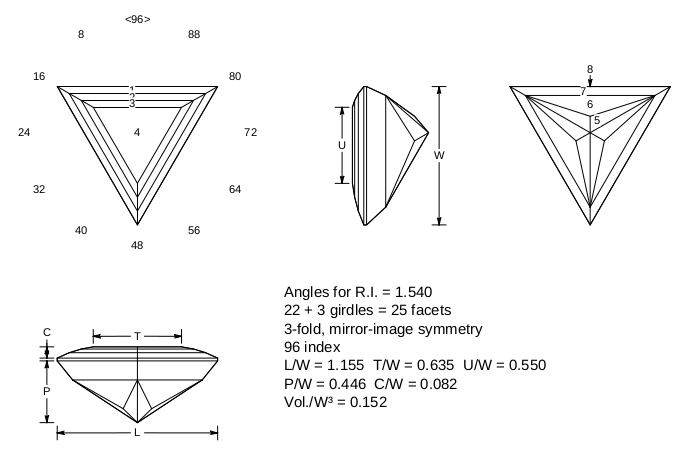

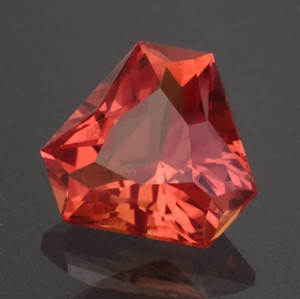

Currently cutting a pink sapphire triangle.
---------------------------

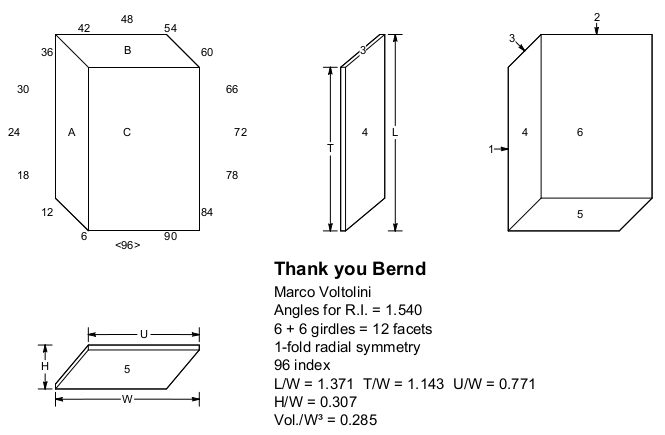

Loosely based on a design by Marco Voltolini
---------------------------

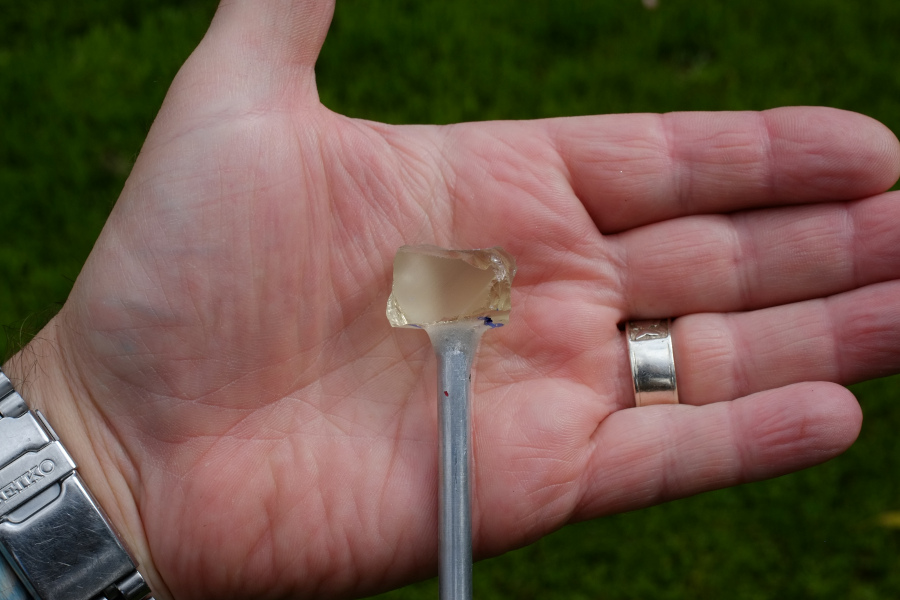

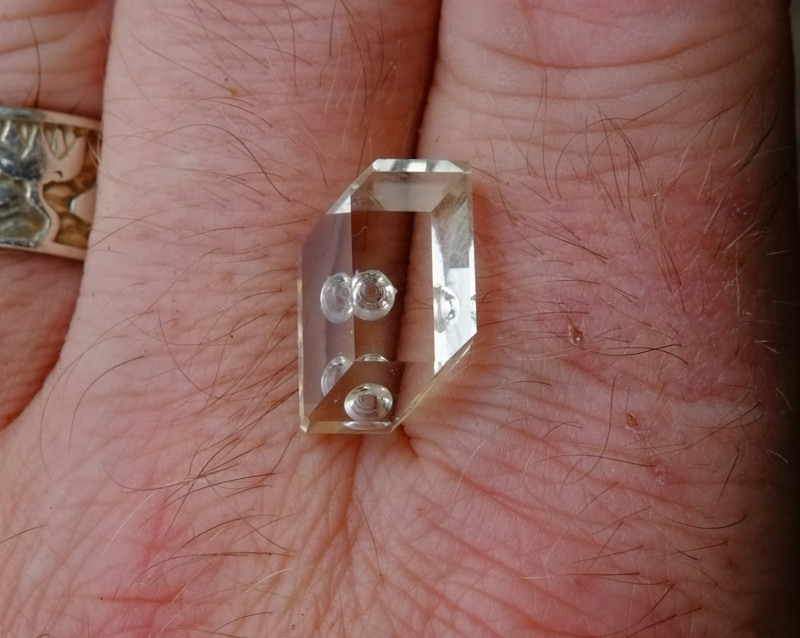

I'm cutting some stones for a display in the Oxford National History Museum. This is yellow smokey quartz from which I hope to cut something rather unusual......
---------------------------
Stars of David are very tricky to get right. This looks good in the flesh though not so good at high magnification. Whilst I can place facets to better than 1 /40 degree the slightest misalignment become apparent at high mag. I can now see why some faceters place the star in the pavilion (bottom) as the angles are less critical.
I think I'll leave them for the mo. I am prepared to cut one to commission but the cutting time may well be in excess of 20 hours - this will be expensive.
For the moment my religious/mystical are various crosses/crusader shields, Yin-Yang and the Lucifer cut.
---------------------------

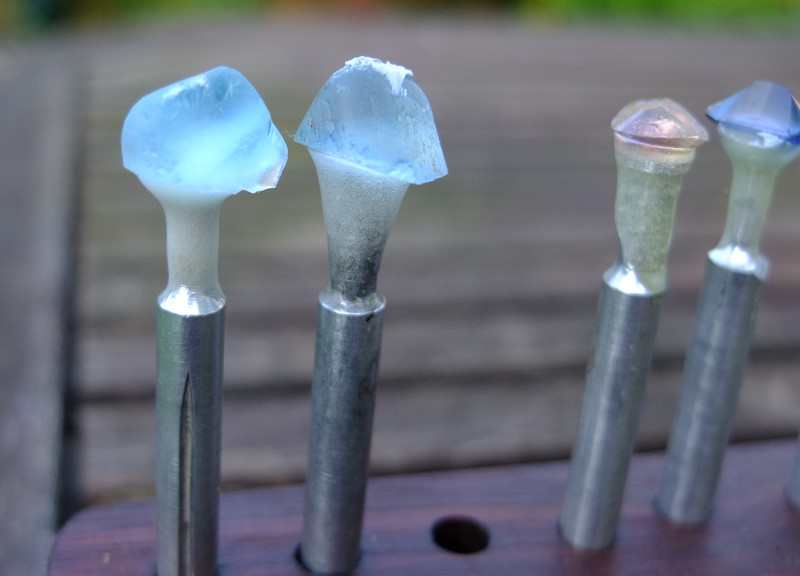

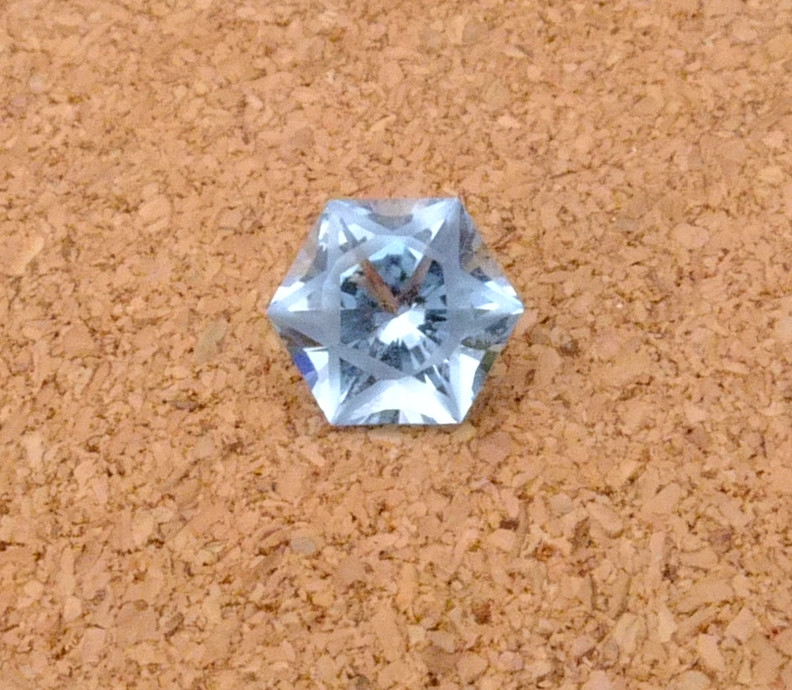

I have received some blue topaz from a dealer in N.Z. Currently working on a matched pair of Stars of David which should look nice in this light blue.

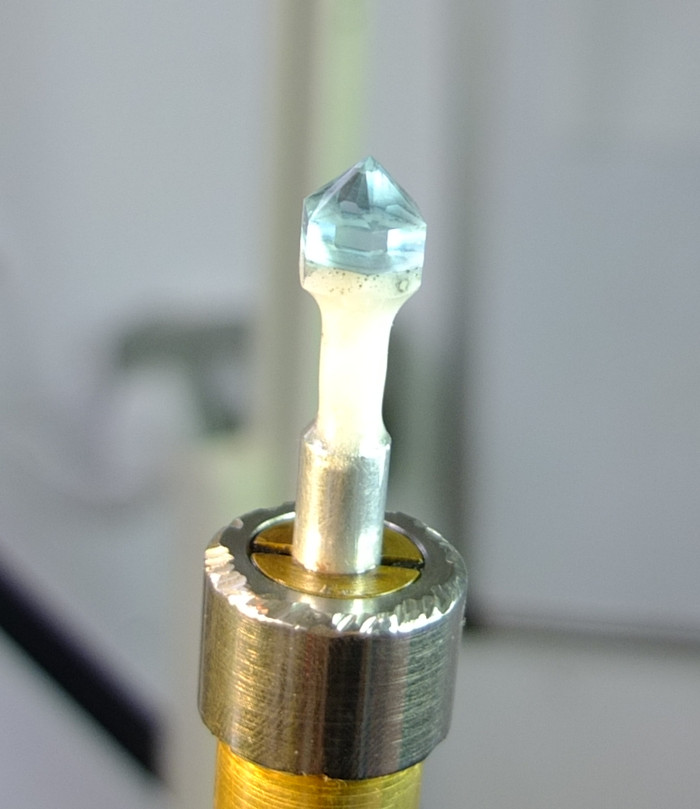

Preparing to polish the pavilion on the first stone
---------------------------

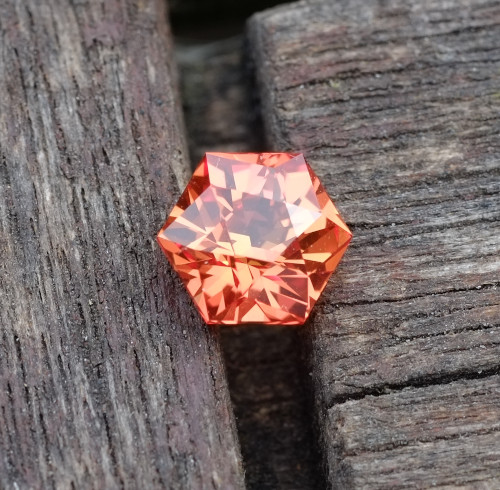

'Rexy' by Robert Dodd - cut in sapphire
---------------------------
'Smith Bar' by Jeff Graham - cut in natural moss tourmaline
---------------------------
I have just received 65ct of very nice rough from New Zealand. I should be able to cut at least 6 nice stones from this.
---------------------------

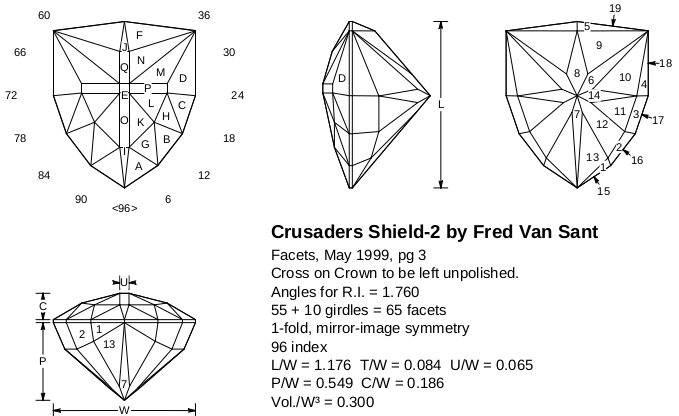

Continuing with my aim of building up a portfolio of mythologically inspired gemcuts - I now have a couple of Stars of David, various pentagrams, the 'Lucifer' cut and crosses. I am presently working on a yin-yang in ametrine. Here is a 'crusader shield' the cross would stand out better in a lighter stone especially if left frosted. Unfortunately I neglected to clean the stone properly before filming. Maltese crosses may be a better way to go as the simpler cross would stand out more. Also my own 'flower pentagram' in pink sapphire.
---------------------------
The white (clear) is the classic design by Fred Van Sant, two tiers of facets on the crown are frosted to create a Star of David. For the second I slightly adapted the design, cut in blue sapphire to match the Israeli flag - a lighter blue may work better.
---------------------------

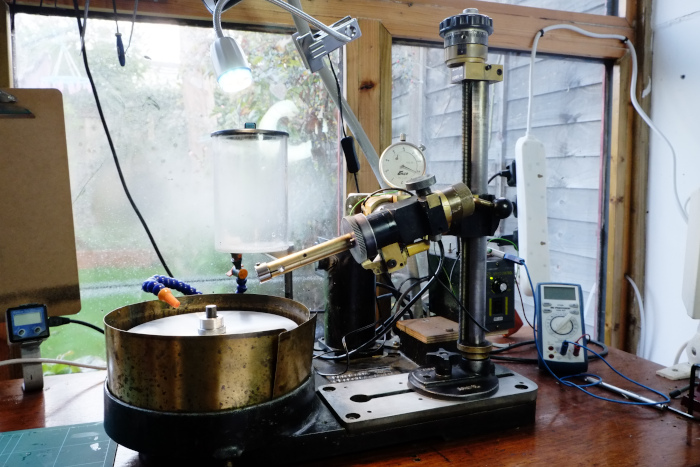

Decided to retrofit an optical encoder to my facting machine as the cheap 'n cheerful one is playing up. I've ordered a 3600 cpr optical encoder from the US (US Digital E6), with quadrature encoding this should give a resolution of 0.025 degrees. I'll use an Arduino with a panel display for the readout and maybe fit a pressure sensor to the quill whilst I am at it. This probably means very little to most people - but its a cheap(ish) way of measuring angles on a machine bloody precisely.
---------------------------

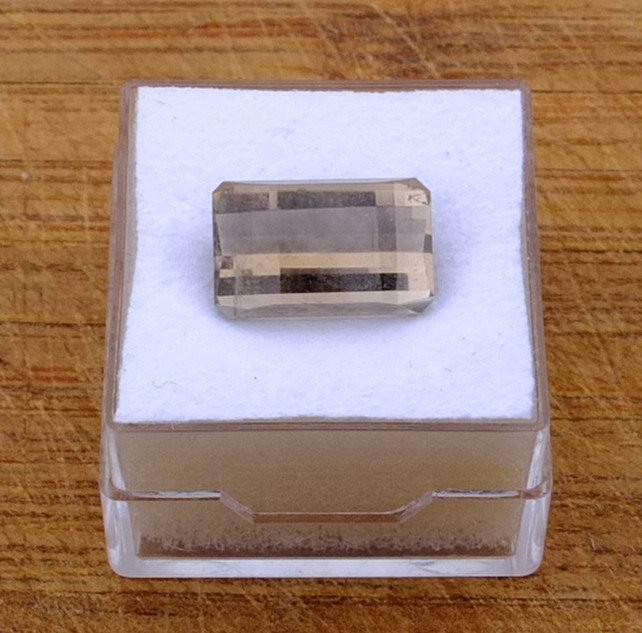

A quicky photo of recent test cut - included smoky quartz (i.e. the marks are internal not on the surface), design 'Smithsonian' Bar by Jeff Graham.
------ooo00O00ooo------
5.5ct 10mm high, symmetrical. The cut is 'Alien Outpost' by Greg Glenn - a classic gemstone designer. 49 facets optimized for sapphire. This stone was very slowly cut, mostly on 3000 grit, polished on 8000 grit and finished on 100,000 grit using a ceramic lap for maximum sparkle and flatness.
------ooo00O00ooo------

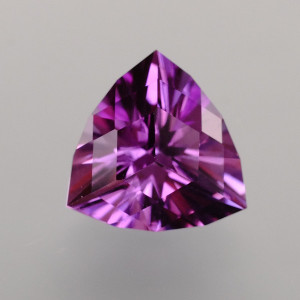

An unusual and rather difficult cut. Reminds me of an Escher drawing, when moved the central cube appears and disappears. This particular cut is surprisingly tricky and rather time consuming, I went through a number of stones before I got it right. It took so long that I am unlikely to do another for some time. 9-9.1 mm high. A very deep brazilian purple.
------ooo00O00ooo------
Postie today delivered a package from Russia. Various Lithium Niobate prisms for me to facet. Like the tantalate probably surplus from the high-tec defense programs of the 80's. A clear opto-electronic ceramic with a high refractive index - close to that of diamond. Rare stuff.
------ooo00O00ooo------

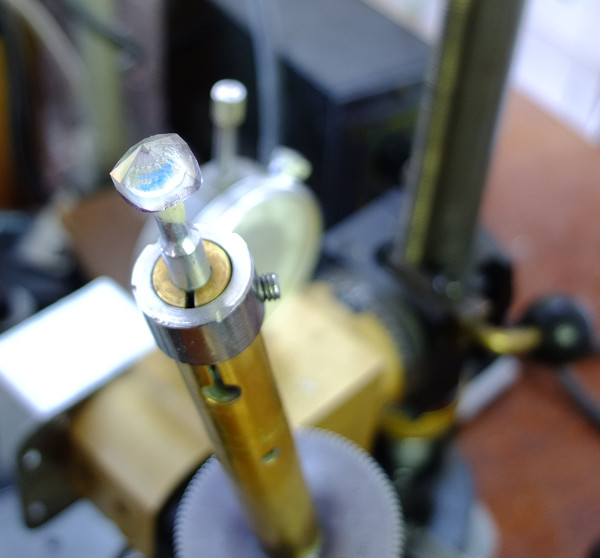

Relaxing with a change of scene. Continuing to cut a white sapphire which I have been neglecting under pressure of work- 'Sweetheart' cut - same size and cut as the one somewhere below.
------ooo00O00ooo------
------ooo00O00ooo------

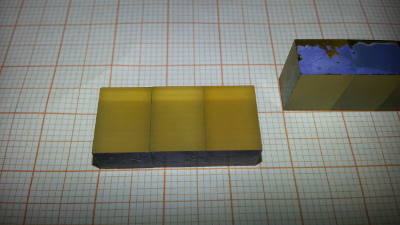

Postie delivered a package from Russia containing three pieces of Lithium Tantalate - LiTaO3. An exotic optoelectronic ceramic, little cut due to scarcity, high refractive index (2.2) and crazy high dispersion (0.128) - three times that of diamond. Given where it was posted from and the date of 1978 I suspect this is old stock from the soviet high-tec defense industry. Rare stuff, I will have to think carefully about suitable cuts.
